Build and release¶

This page documents the release process for taking prodockit from an accepted change to a package on PyPI and a documentation site that shows the same release. It describes this repository's real GitHub Actions workflows rather than a generic Python release.

A release is deliberately split in two:

1. A pull request changes and validates the source.
2. A published GitHub release creates the tag and authorises publishing.

Do not publish a GitHub release from an unmerged branch. publish.yml builds the tagged source, while the documentation redeploy is deliberately run from main; both must describe the same commit.

Understand the workflow chain¶

Two independent events start the automation. A release branch opens the pull request path: scoped and core checks run before the branch is merged, after which the package and documentation are published from main. A weekly timer starts only the drift comparison and never publishes a release.

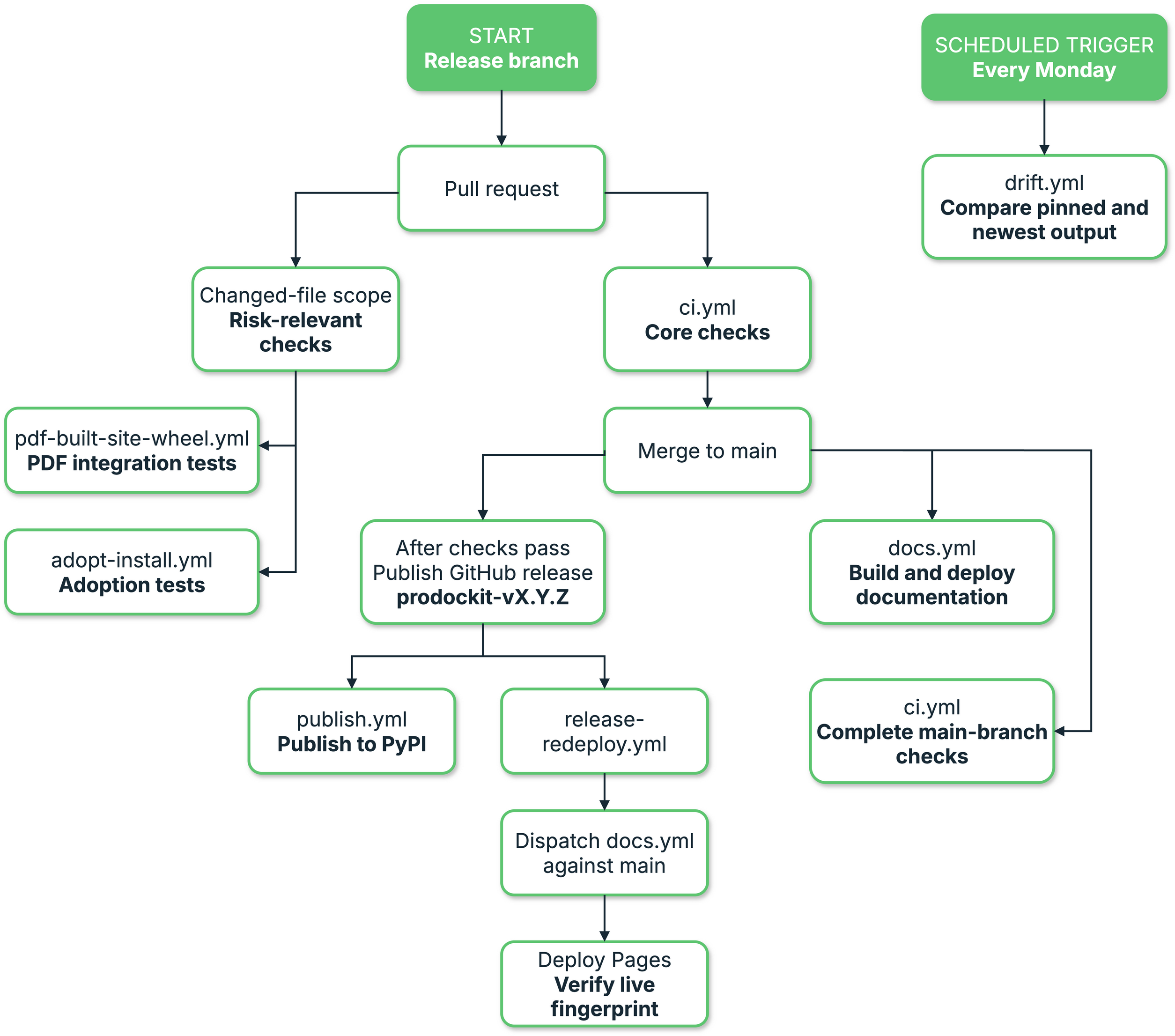

Figure 18.1 shows those entry points in solid green. Follow the release branch down the centre and left of the diagram; the separate scheduled path is on the right.

The solid green boxes are entry points: a maintainer starts the release path from a release branch, while GitHub starts the drift path on its weekly schedule. The other boxes are actions or workflow stages that follow.

Table 18.1 maps each workflow file to its trigger and responsibility.

The workflow roles in Table 18.1 overlap intentionally. ci.yml gives quick pull-request feedback and keeps a scope-aware post-merge check. One repository-owned classifier calculates a complete Git change range and selects expensive checks conservatively: an unknown implementation file, an unreadable range, or a manually applied full-ci label selects everything. adopt-install.yml, bootstrap-install.yml, and pdf-built-site-wheel.yml test their installed wheel independently across Ubuntu x64/ARM64, Windows x64, and macOS ARM64 only when their owned code can change. Unit-test-only changes do not start native runners. Weekly and manual runs remain comprehensive, which is the safety net for an ownership rule that proves incomplete. docs.yml proves and publishes the complete artifacts; publish.yml has the narrow permission needed for PyPI; the redeploy fixes release-tag timing; and drift.yml observes future upgrades without changing the current release.

The Bootstrap workflow deliberately has two levels. Its fast hermetic routes run for relevant implementation changes and retain complete GitLab/GitHub decision coverage without depending on outside services. The slower real installer matrix runs when the package version changes, when that matrix's own implementation changes, or when requested manually. It crosses the live package-manager and download boundary on disposable runners, but still uses no GitHub or GitLab user account. A release therefore detects installer-source, download, architecture and native-library failures before publication without making every ordinary pull request wait for five fresh machine installations.

The separate live-provider workflows are protected shadow controls rather than pull-request tests. They are not a step in the normal package-release procedure and publishing a release does not require or start them. Run one only for a deliberate live-provider validation exercise. Each dispatch now requires the operator to type its complete fixed destination before any job can reach a credential-bearing environment; this prevents a release commit or an unrelated workflow choice from being mistaken for authorisation to mutate a provider.

The GitHub workflow mutates only the fixed private repository buckwem/bootstrap-release-gate. The GitHub App installation token originally designed for this control cannot create a repository in a personal namespace: GitHub supports that endpoint with a fine-grained personal token or a GitHub App user token, but not an installation token. The lifecycle token is therefore stored only in the manually approved reset and seal environments, checked against the buckwem account at runtime, and constrained in code to the single fixed repository. It creates that repository immediately before the test and deletes it during the seal, including after a rejected candidate. This token has wider account scope than the deploy key, so the candidate receives only the fixed repository's deploy key.

Configure PRODOCKIT_LIVE_GITHUB_LIFECYCLE_TOKEN as an environment secret in both bootstrap-live-github-reset and bootstrap-live-github-seal. For a fine-grained personal token, select buckwem as the resource owner, grant access to all repositories so the token can create the currently absent fixed repository, grant repository Administration read and write, and grant Pages and Webhooks read-only access. Grant Contents read-only access so the reset and seal controllers can compare the destination's branches with the candidate record. Do not expose this token as a repository-wide secret or to the candidate environment.

GitHub retains deleted repositories for recovery, including their deploy-key registrations. A fixed deploy key therefore cannot be attached when the same test repository is recreated. The reset job instead generates a new Ed25519 deploy key for every run. It registers the public half and encrypts the private half before passing it through the workflow artifact boundary. The reset job removes its plaintext copy immediately after encryption. The candidate can decrypt the artifact, while the artifact itself and the seal job cannot provide Git access. The sealer revokes the run-scoped key and removes the repository.

The fixture keeps GitHub Actions and Pages disabled throughout the candidate run. Bootstrap's Pages stage is therefore deferred only in this harness: an empty private repository cannot expose that setting to the candidate, and enabling it would allow untrusted candidate content to execute or publish. The ordinary Bootstrap tests continue to cover the user-facing Pages decision; the live-provider run remains focused on authenticated repository reads, the single permitted push, the existing-repository path and cleanup.

Create one 4096-bit RSA wrapping pair on a trusted computer. Keep the private file outside the repository:

umask 077
openssl genpkey -algorithm RSA -pkeyopt rsa_keygen_bits:4096 \
    -out prodockit-live-github-wrap-private.pem
openssl pkey -in prodockit-live-github-wrap-private.pem -pubout \
    -out prodockit-live-github-wrap-public.pem

Store the complete public PEM as PRODOCKIT_LIVE_GITHUB_KEY_WRAP_PUBLIC_KEY in bootstrap-live-github-reset. Store the complete private PEM as PRODOCKIT_LIVE_GITHUB_KEY_WRAP_PRIVATE_KEY only in bootstrap-live-github-candidate. Store GitHub's reviewed SSH host-key record as PRODOCKIT_LIVE_GITHUB_KNOWN_HOSTS in the candidate environment as well. The encrypted deploy-key artifact is bound to the public-key fingerprint in the reset handoff before the candidate loads it. Delete the obsolete PRODOCKIT_LIVE_GITHUB_DEPLOY_PUBLIC_KEY and PRODOCKIT_LIVE_GITHUB_DEPLOY_PRIVATE_KEY secrets after this change is live.

Restrict all three environments to main. Never put the lifecycle token or RSA wrapping private key in the same environment. The wrapping private key cannot access GitHub: it can only decrypt the one-time repository credential generated inside a reviewed workflow run.

For a deliberate GitHub exercise, dispatch Bootstrap live provider — GitHub shadow with the full commit currently at protected main and type buckwem/bootstrap-release-gate in the live target confirmation field. Do not use this workflow merely because the same commit is being released.

The Surrey pipeline mutates only assessment-liveprovider-2026/report-liveprovider-2026-mb0105 and runs from the fixed mb0105/prodockit-extensions mirror. Each provider separates reset, candidate, and seal into protected jobs so no job can receive both a lifecycle credential and a repository deploy private key. A successful seal retains the verified private project as closed state after removing its write key. The protected release-gate shadow resolves both GitHub Actions run IDs through the GitHub API, requires the six ordinary release workflows for that exact commit plus any active protected-main status checks, rebuilds the candidate wheel and compares canonical contents before it retains combined public-safe evidence. Until the dual-provider shadow acceptance criteria have passed, these workflows supply evidence only: publish.yml remains unchanged and cannot treat a provider or coordinator result as release approval.

The protected GitLab pipeline has the same deliberate-dispatch boundary. Set PRODOCKIT_LIVE_CONFIRM_TARGET to assessment-liveprovider-2026/report-liveprovider-2026-mb0105; leave it blank for every ordinary pipeline and release.

The Phase 5 migration also makes the Surrey test available as a protected GitHub Actions workflow. Run Bootstrap live provider — Surrey connectivity before configuring credentials. It performs only DNS, TLS, port and public host-key observations. A failed probe means the hosted-runner design is not usable on the current Surrey network; do not weaken SSH verification or expose the service more widely to make the test pass.

Create the GitHub Environments listed in Table 18.2, restrict each to protected main, and store the named values as environment secrets.

The reset environment is the one human approval boundary. Do not require a second approval for candidate or seal: a waiting seal could leave repository write access active. The group token must be restricted to the otherwise empty assessment-liveprovider-2026 test group. The candidate key must be dedicated to this fixture and usable non-interactively on a disposable runner; never use a personal SSH key or export a 1Password-managed identity. Enter the group token separately in reset and seal so the candidate environment cannot resolve it. Disable administrator bypass where the repository settings permit it.

Normally dispatch Bootstrap live provider — Surrey GitLab with only the full commit currently at protected GitHub main, then type assessment-liveprovider-2026/report-liveprovider-2026-mb0105 in the live target confirmation field. It discovers the newest valid sealed state from earlier runs. The optional prior-run field is for an authorised recovery from artifact-discovery failure and still accepts only a successful earlier run of this exact workflow. If a run is cancelled after reset, dispatch Bootstrap live provider — Surrey recovery seal with that failed run ID and its release commit. Recovery only revokes the exact key; it does not make the failed run releasable.

Leave the controlled candidate-failure and stale-main exercise options off during an ordinary run. They are maintainer tests for the fail-closed paths and deliberately finish with a failed workflow after repository access is revoked.

Keep the GitLab pipeline as the inactive rollback route until the GitHub-hosted workflow has passed absent-project, repeated retained-project, candidate failure, stale-commit and cancellation-recovery exercises. Never run both Surrey lifecycle controllers at the same time because their concurrency locks belong to different providers.

This is the deliberate balance between time and maintenance complexity. The native matrices remain complete once selected rather than introducing a second layer of partial platform scenarios. All four workflows expose one stable result job for branch protection, while their detailed jobs may be selected or skipped. Post-merge validation remains enabled until those stable result checks are required by the repository ruleset; removing it sooner would save time by relying on a protection that had not yet been enforced.

1. Choose the release version¶

Use semantic versioning as a decision aid:

Table 18.3 maps patch, minor, and major versions to the kind of change being released.

Use Table 18.3 to translate the reviewed change into a version increment. Read every change since the previous prodockit-v... tag. The Git history is the complete record; the website release notes intentionally contain only short changes that matter to package users:

git fetch --tags origin
git log --oneline prodockit-v0.41.0..origin/main

The tag prefix matters. Historic tags named only vX.Y.Z exist, but current package releases use prodockit-vX.Y.Z, such as prodockit-v0.41.0.

2. Prepare the release branch¶

Create the release metadata on a branch based on the latest main, then let the repository checks validate that exact change.

1. Start from current main

   git switch main
   git pull --ff-only
   git switch -c release/0.42.0


   Replace 0.42.0 throughout this page with the version being prepared.

2. Update both code version sources

   The package version is declared twice:

   pyproject.toml

   [project]
   version = "0.42.0"


   src/prodockit/__init__.py

   __version__ = "0.42.0"


   They serve different readers: build metadata supplies the wheel and PyPI; prodockit.__version__ supplies Python callers and prodockit --version. Leaving either behind publishes two answers about one release.

3. Finish the release notes

   In docs/about/changelog.md, replace the one ## Unreleased heading with:

   ## 0.42.0 (2026-08-22)


   Review every merged change since the previous tag. Add missing entries and write short bullets for a user deciding whether to upgrade: added or changed behaviour and any action required. Do not reproduce defects, pull-request detail, or commit subjects; Git commits, issues, pull requests, tags, and GitHub Releases retain that history.

   Keep each fix to one source line and each new feature to no more than two source lines. Combine closely related fixes when that makes the user-visible outcome clearer; do not spend separate bullets on internal implementation work that does not change behaviour.

   The changelog tests enforce one Unreleased section at most, its position, newest-first released versions, and its website-only policy. They do not know whether a user-relevant change was omitted, so the comparison with git log is still required.

4. Check descriptions exposed outside the guide

   If the release changes the public capability set, update the places a reader sees before opening the full documentation:

   • README.md, rendered on GitHub and PyPI;
   • the [project].description in pyproject.toml, used as PyPI's summary;
   • the package docstring in src/prodockit/__init__.py, shown by Python help.

   Tests guard extension inventories, but prose describing a changed command or capability still needs review.

3. Run the local release gates¶

Activate the development environment first. On Apple Silicon macOS, expose Homebrew's Pango libraries in the same terminal that will run the gates:

export DYLD_FALLBACK_LIBRARY_PATH=/opt/homebrew/lib

Use /usr/local/lib on an Intel Mac. If this is missing, the PDF-backed tests typically fail with cannot load library 'libgobject-2.0-0' even though brew install pango has completed. This is a loader-path problem, not evidence of a code regression or a missing Python package.

Run the same logical gates as ci.yml:

ruff check .
mypy src
prodockit pins --check --offline
pytest
zensical build --clean --strict

Because this repository publishes a PDF as part of its documentation, build the strict website first and then let the PDF command consume it:

zensical build --clean --strict
prodockit pdf
python -m pytest tests/test_built_docs.py -m built -v

Then verify the release identity directly:

python -m pip install "twine==7.0.0"
python -m build
python -m twine check --strict dist/*.whl dist/*.tar.gz
python -m zipfile --list dist/prodockit-0.42.0-py3-none-any.whl
prodockit --version

Twine validates the metadata and renders the README.md description from both the wheel and source distribution using PyPI's rules. --strict turns a rendering warning into a failed release gate. Twine is installed only for this package check; it is not a dependency for authors using Prodockit.

The wheel filename and command output should both say 0.42.0. Do not upload the locally built dist/; publish.yml rebuilds from the immutable release tag and publishes that artifact.

4. Open and merge the release pull request¶

Review the release diff before committing:

git diff --check
git status --short
git diff -- pyproject.toml src/prodockit/__init__.py docs/about/changelog.md

Commit, push, and open the pull request:

git add pyproject.toml src/prodockit/__init__.py docs/about/changelog.md
git commit -m "Release 0.42.0"
git push -u origin release/0.42.0
gh pr create --title "Release 0.42.0"

Only add files actually changed and reviewed; the command above is a checklist, not permission to commit unrelated work.

On the release pull request, ci.yml runs:

• the oldest and newest supported Python versions, because package metadata changed;
• the real Pandoc and WeasyPrint stack on Python 3.14;
• Ruff and mypy once;
• prodockit pins --check --offline;
• the ordinary test suite on both selected interpreters, with coverage collected once;
• a separate strict documentation build.

Changing pyproject.toml also selects both installed-wheel workflows, so a release candidate still crosses every reviewed operating-system and processor architecture. A writing-only pull request does not pay for those matrices.

Merge only after all required checks pass. After merging, wait for the new main run of ci.yml—including Python 3.10–3.14 and both complete installed-wheel matrices—and the first docs.yml deployment to succeed. That first documentation build may still show the previous release because the new tag does not exist yet; the release-triggered redeploy corrects it.

5. Publish the GitHub release¶

Create a release targeting the merged main commit. Publishing—not merely saving a draft—is the event that starts PyPI publishing and the documentation redeploy:

gh release create prodockit-v0.42.0 \
  --repo buckwem/prodockit-extensions \
  --target main \
  --title "prodockit 0.42.0" \
  --generate-notes

Before confirming, check:

• the tag is exactly prodockit-v0.42.0;
• the target is the merged release commit on main;
• the release title is prodockit 0.42.0;
• the notes describe the same release as docs/about/changelog.md.

A tag with the right name on the wrong commit is still the wrong package. Do not delete and recreate tags casually once an artifact may have reached PyPI; package versions there are immutable.

6. Follow the release workflows¶

Two workflows start from the published release.

PyPI: publish.yml¶

The build job checks out the tag, installs build and the reviewed Twine version, and runs python -m build. Before anything can be uploaded, Twine strictly validates both the wheel and source distribution, including how PyPI will render README.md. The job then uploads dist/ as a workflow artifact. The publish job downloads that exact artifact in the protected pypi environment and uses PyPI Trusted Publishing (id-token: write), so no long-lived API token is stored in the repository.

Watch it with:

gh run list --workflow publish.yml --limit 5

After success, verify the public package rather than relying only on the green workflow:

python -m pip index versions prodockit

Documentation: release-redeploy.yml → docs.yml¶

The release event itself runs against a tag ref. GitHub Pages deployments from that ref previously reported success while the public site kept serving the old build. release-redeploy.yml therefore builds nothing: it dispatches docs.yml --ref main with actions: write permission.

docs.yml then:

1. checks out full history so git describe can see tags;
2. installs pinned system, Python, Mermaid, and MathJax inputs;
3. builds the complete PDF and selected single-page PDFs;
4. strictly builds the website after the PDF;
5. runs the built-output tests;
6. uploads and deploys site/;
7. fingerprints the uploaded index.html and polls the public Pages URL until it serves those exact bytes.

The single-page builds come from .github/docs-single-page-pdfs.toml. Every navigated page is either a representative build or explicitly mapped to one; tests/test_docs_pdf_matrix.py rejects an unclassified new page. All nine authoring extensions and each audience overview are representatives, while pages with the same material shape reuse one build to keep renderer work bounded.

Only pages listed under [build] get a Download this page as PDF action. The [covered] mappings describe test coverage, not substitute downloads. After changing the matrix, run python tools/docs_page_pdfs.py generate and commit the updated overrides/partials/page-pdf.html alongside it. CI checks that the partial still matches the matrix.

After each successful single-page build, CI copies that page's PDF into docs/page-pdfs/, retaining its source directory: for example, extensions/headings.md becomes page-pdfs/extensions/headings.pdf. This avoids filename collisions and preserves the downloads across the final clean website rebuild. Immediately before publication, python tools/docs_page_pdfs.py verify checks every PDF action against its page-specific path and requires the PDF to exist in site/. Pages without their own build must not offer the action. The CLI's existing flat PDF outputs remain unchanged.

The workflow uses a pages concurrency group with cancellation disabled. A queued later deployment must wait and supersede the earlier one; cancelling it could leave the pre-release-tag build live.

Watch both workflows:

gh run list --workflow release-redeploy.yml --limit 5
gh run list --workflow docs.yml --limit 5

7. Verify the release as a user¶

Automation has separate success conditions, so perform separate public checks:

Table 18.4 separates package, documentation, and PDF checks so each public artifact is verified.

The public checks in Table 18.4 prove different parts of the release. A clean installation check can use a temporary virtual environment:

python -m venv /tmp/prodockit-release-check
/tmp/prodockit-release-check/bin/python -m pip install "prodockit==0.42.0"
/tmp/prodockit-release-check/bin/prodockit --version

Use the platform's corresponding activation or executable path on Windows.

Recover from a failed stage¶

Use Table 18.5 to resume from the last completed boundary without repeating publication work unnecessarily.

After release¶

Return to ordinary development by creating a new ## Unreleased section when the next user-visible change is made. Do not create an empty section merely as release ceremony; the changelog test permits it to be absent between releases.

Downstream repositories that pin prodockit—especially prodockit-template and the userguide—should update deliberately, rebuild their own site and PDF, and use their own tests before adopting the release. Where a downstream repository has a Surrey GitLab mirror, its release is not complete until the mirror's main branch and matching release tag have also been updated and verified.

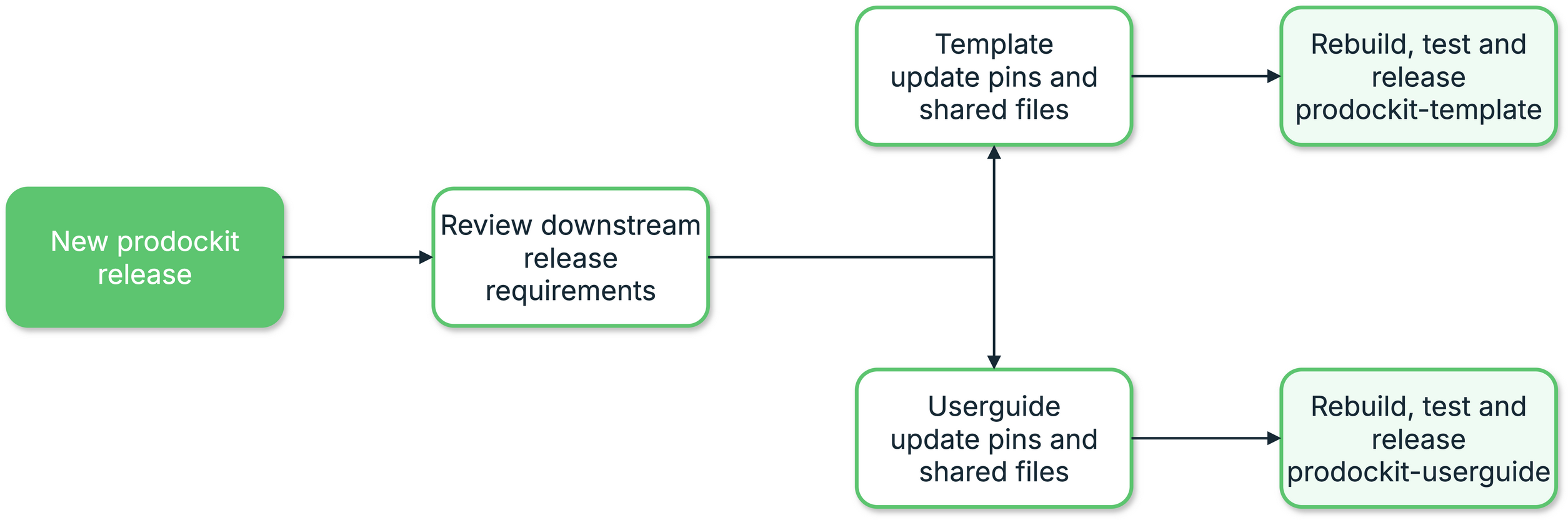

Figure 18.2 shows the downstream sequence. Each repository first updates its version pin and shared files, then builds and tests its own outputs before making a separate release. A successful prodockit release starts this review; it does not bypass it.

Complete each downstream mirror¶

GitHub is the canonical source for prodockit-template and prodockit-userguide; their University of Surrey GitLab repositories are distribution mirrors used by student projects. A GitHub release alone does not update either mirror. In particular, template-sync reads the template from the host selected for the project, so a Surrey project continues to receive an older Prodockit/Zensical combination while the Surrey template mirror is behind.

Treat sync as an outcome, not as the creation of a branch or merge request. For each downstream repository:

1. merge and verify the canonical GitHub release;
2. fetch both repositories and reconcile the GitLab history with the exact GitHub release commit without force-pushing or discarding either history;
3. update GitLab main directly when its permissions allow it;
4. push the matching GitHub release tag so it points to the canonical release commit, not merely to a later GitLab merge commit;
5. prove the GitLab main tree is byte-for-byte identical to the GitHub release tree and that the GitLab tag resolves to the intended commit; and
6. remove the temporary sync branch and close any superseded sync request.

A merge request is a fallback for a protected branch or an explicitly requested review, not the definition of a completed mirror sync. If one is required, do not report the repository as synchronised while it remains open: merge it, verify main, publish the tag, and then report completion. One current request should replace, close, or contain any older pending sync; never leave several cumulative requests for the maintainer to untangle.

Use a clean temporary worktree or clone for the reconciliation. These checks state the completion contract; substitute the repository's real remote names, release tag, and canonical release commit:

git fetch github main --tags
git fetch surrey main --tags
git diff --exit-code <github-release-commit> surrey/main
git ls-remote surrey refs/heads/main refs/tags/<release-tag>

The tree comparison may be empty even when GitLab main is a reconciliation merge commit: that is expected when the histories differ. The tag must still identify the exact canonical GitHub release commit. After synchronising the template, run a preview from a disposable Surrey-hosted project and confirm that template-sync reports the newly released template and supported Prodockit/Zensical versions before applying it to a real project.
